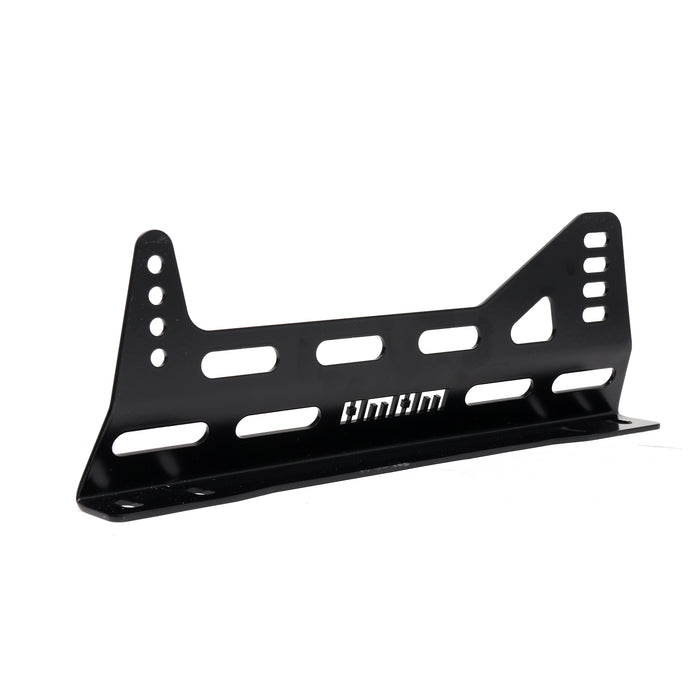

Momo Steel Side Mount Seat Bracket

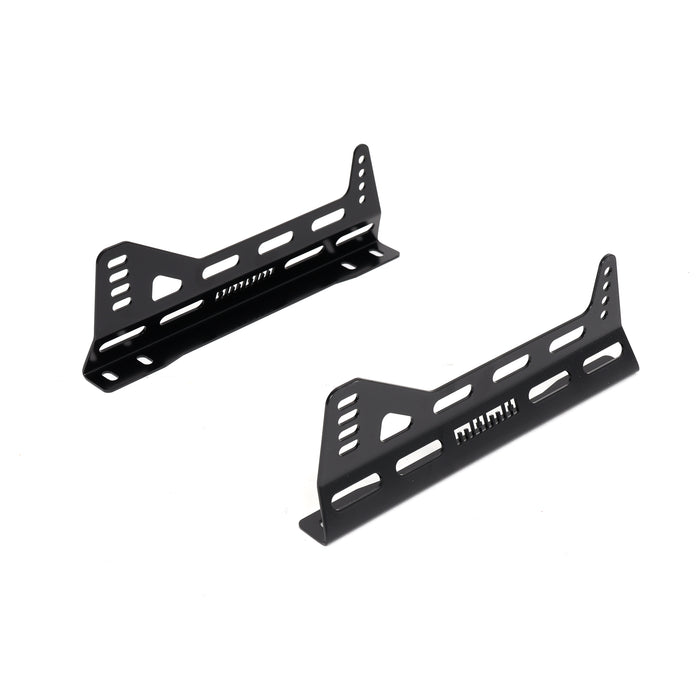

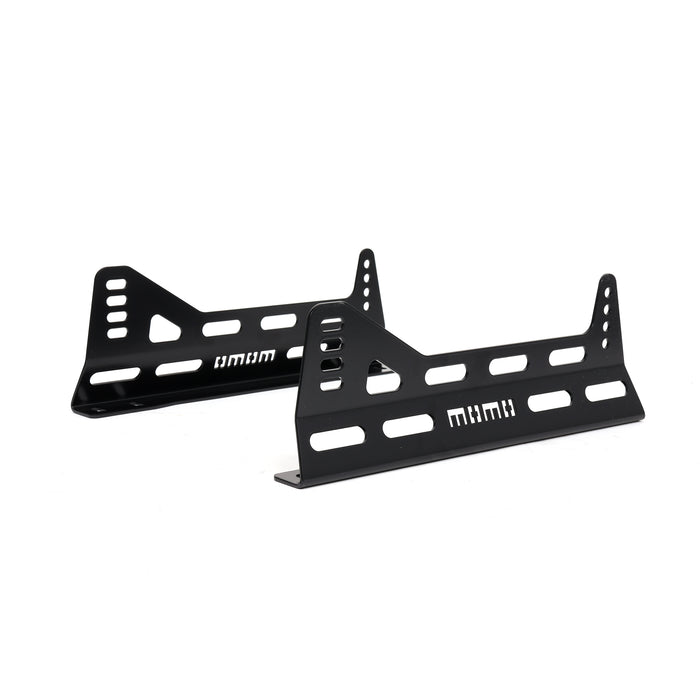

Bolting a Momo seat or any side-mount race seat into your Civic and you need the L-brackets that connect your seat to your rails? Momo steel side mounts are the brackets that bolt to the side tabs on your race seat. I've run Momo side mounts with Sparco seats, Bride seats, whatever, they're universal. The brackets are laser-cut from 3mm steel with a bunch of mounting holes so you can set your seat height and recline angle wherever you want. They're sold as a pair, left and right. You bolt one to each side of your seat, then you bolt the brackets down to your seat rails or you bolt them straight to your floor if you're running a custom setup. If you've got a side-mount seat, you need side mounts.
Here's What These Actually Do

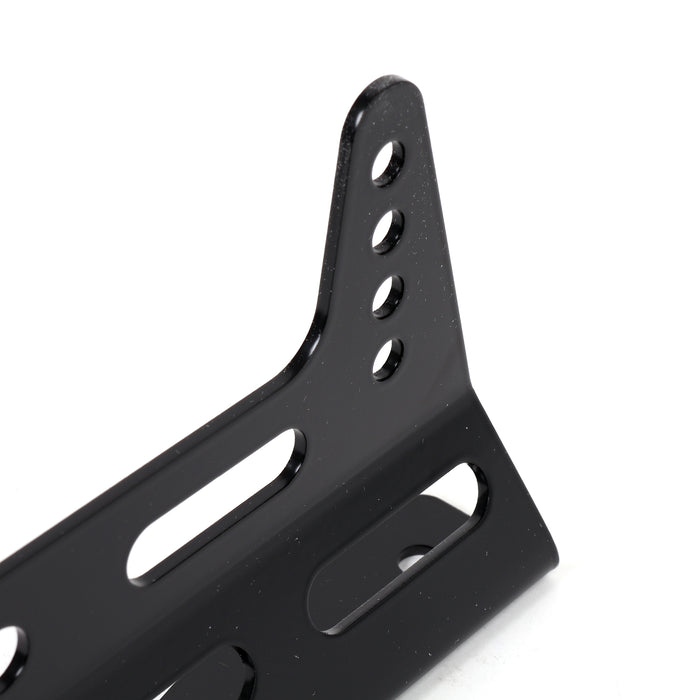

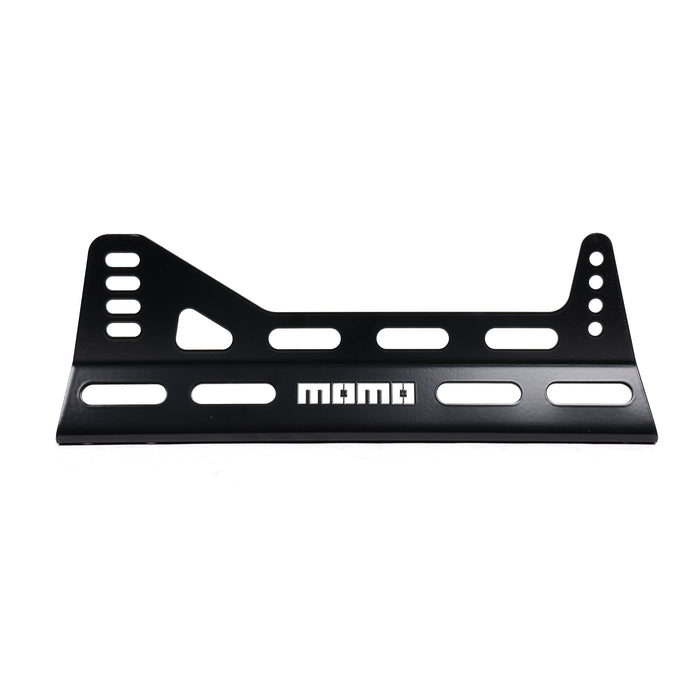

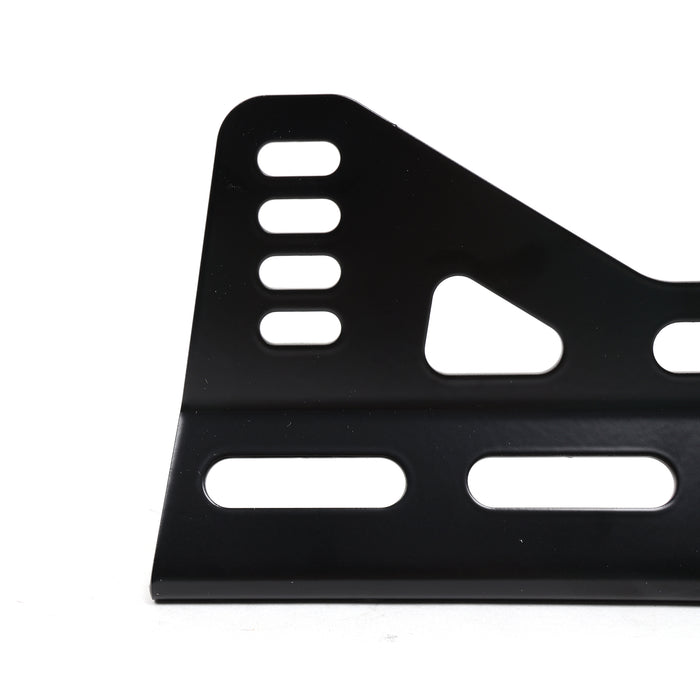

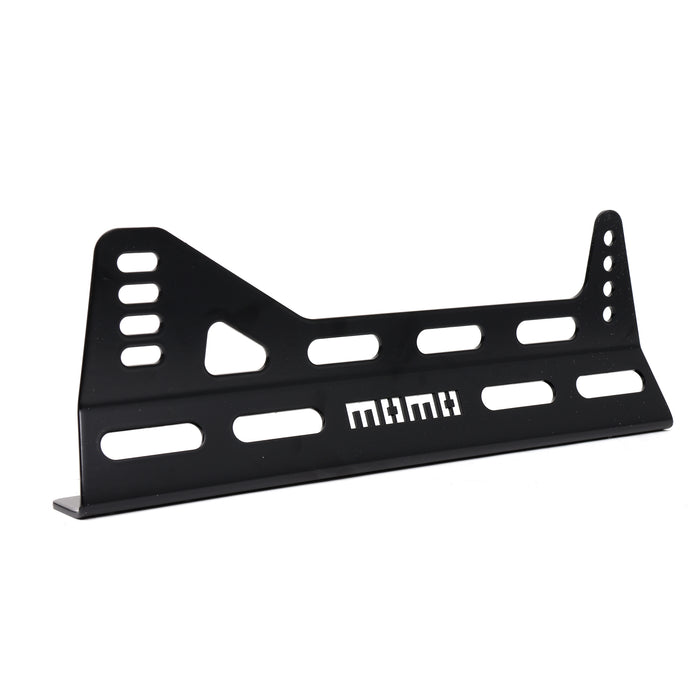

Your race seat's got mounting tabs sticking out the sides. Your seat rails or floor mounts don't line up with those tabs. The side mounts are the adapter in between. They bolt to your seat's side tabs and they bolt to your rails or floor. The Momo brackets have probably 6-8 holes running vertically and 3-4 holes horizontally. You pick which holes to use based on how low you want to sit and how much you want the seat reclined. Want to sit lower? Use the bottom holes. Want more recline? Shift the mounting position back. It's all about getting your seating position dialed in before you torque everything down.
3mm Laser-Cut Steel
The brackets are laser-cut from 3mm carbon steel. That's about 1/8 inch thick, strong enough to hold you in the seat without being crazy heavy. Laser cutting means the holes are clean and they're in the right spots. Cheap brackets are stamped or plasma-cut and the holes are all over the place. These are powder-coated black so they won't rust sitting in your car.
Work with Pretty Much Any Side-Mount Seat
Momo says these fit Momo seats, but they fit basically any side-mount seat I've ever used. Sparco, Bride, Recaro, Corbeau, whatever. Side-mount seats have pretty similar tab spacing and hole patterns. I've personally bolted Sparco Evo seats and Bride Low Max seats with Momo side mounts and they lined up fine. Just check your seat's side tab hole spacing before you order. If it's got side tabs with holes, these'll probably work.
Fixed Brackets - No Sliders
These are fixed L-brackets. Once you bolt your seat down, it's not moving. You're not sliding it forward and back like your factory seat. If you need adjustability for multiple drivers, buy seat sliders separately and bolt these side mounts to the sliders. Most people building track cars run fixed mounts to save weight and get rid of the flex that sliders add.
What You Get
- Momo steel side mount brackets (pair)
- 3mm laser-cut carbon steel
- Black powder-coat finish
- Multiple mounting holes for height/recline adjustment
- Works with Momo and most side-mount race seats
Works With
- Momo race seats (all side-mount models)
- Most side-mount seats (Sparco, Bride, Recaro, Corbeau, etc.)
- Seat rails, sliders, or custom floor mounts
Note: Sold as a pair (mounts one seat). Use thread locker on all bolts. Test-fit and choose your holes before you torque anything down - once you've drilled or committed to holes, it's hard to change position. If you're bolting to a roll cage, use grade 8.8+ bolts.
Technical details:
Material: 3mm Laser-Cut Carbon Steel
Finish: Black Matte Powder Coat
Compatibility: Fits all Momo seats; adaptable to other manufacturers’ composite seats
Quantity: (2) Brackets, Enough for Mounting 1 Seat
Included:
(2) Side Mount Seat Brackets
Install Guide:

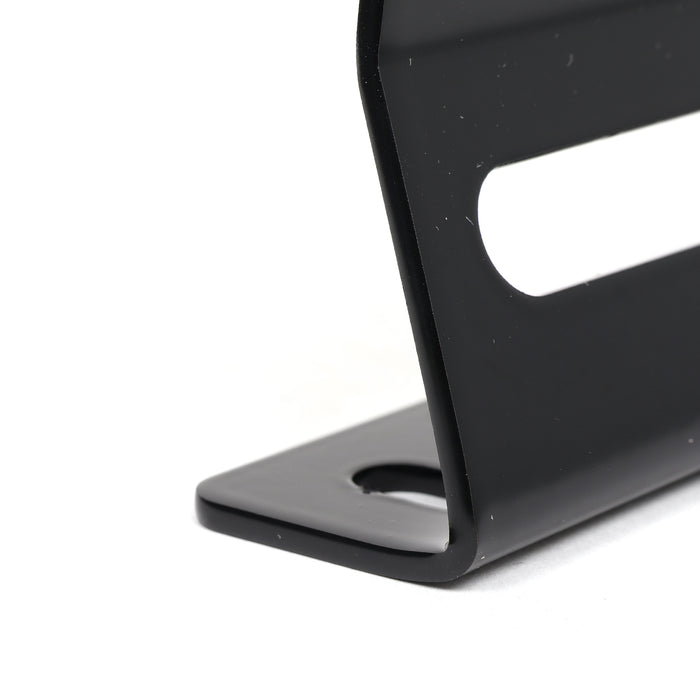

One set will mount one seat. These fixed 'L' bracket mounts bolt to the side of the seat and offer a variety of height and lay-back mounting positions. The bottom mount features various positions to bolt to seat slides, roll-cage, or structural members on the floor.
